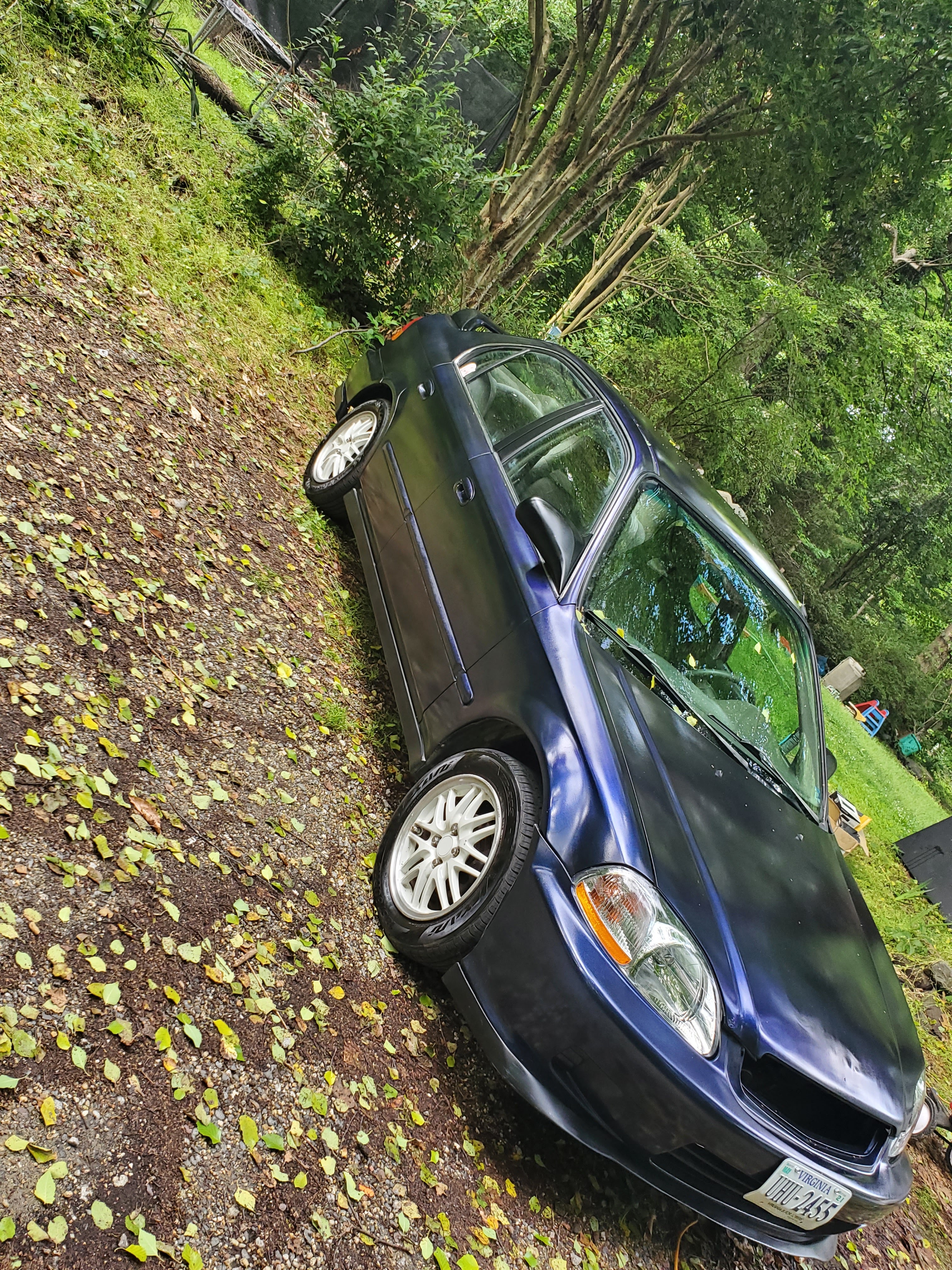

leprecaunjon's 1998 Honda Civic LX

Build Feature Image
#dseries #streetturbo #ej6

Vehicle Specs

Build type: Street/daily

  • Curb Weight: 2380
  • Engine Type: D16Y8
  • Transmission Type: Synchrotech S40 non-LSD

Modifications

Brakes

Scarbird Rear Disc conversion

Part No: CIV B25 | $600.00

Notes: stock rear control arms, 1999 SI rear calipers and brake components. brand new oem parking brake cables 1998 integra gsr rear parking brake cable mounts. scarbird conversion kit powder coated.

Lines to Go Stainless steel hard brake lines

Part No: BL1105-SS1 | $257.68

Notes: full stainless steel hard lines front to back

Russell stainless steel brake hoses

Part No: 684610 | $87.00

Notes: front and rear stainless traded lines to replace oem rubber lines ( rear replaced with disc hoses from a different kir)

Bushings

energy trailing arm

Part No: 167106G | $35.00

energy shift linkage bushings

Part No: 161102G | $15.00

energy front lower control arm bushings

Part No: 163114G | $80.00

Cooling

Yonaka motorsports duel core radiator and fan (Not Installed)

HPS performance heater core hoses ( silicone)

Part No: 57-1773-RED | $100.00

mishimoto radiator hoses

Part No: MMHOSE-CIV-88 | $115.00

mishimoto high temp thermostat (Not Installed)

Part No: MMTS-CIV-92L | $60.00

Notes: 154.4 degree

mishimoto fan switch

Part No: MMFAN-SWITCH | $35.00

Gates water pump assembly (Not Installed)

Part No: 41048

Engine Components

speedfactory YCP vitara pistons, no notch long rods (Not Installed)

Part No: IG SF-02-103 & YCP-75.5MMKIT | $716.00

Delta 272 Cam (Not Installed)

Farrea 6000 valves (Not Installed)

Brian Crower Valve springs and titanium retainers (Not Installed)

Part No: BC0070 | $280.00

Notes: new oem valve seats

AEM Cam Gear (Not Installed)

Part No: 23-804BK | $100.00

Honda micro polished d16y8 Crank (Not Installed)

Gates Timing set (Not Installed)

Part No: TCKWP224 | $75.00

OEM Shimmed oil pump (Not Installed)

honda d16Y8 head on y8 block (Not Installed)

Notes: car is a d16y7 non vtec car from factory. cored a d16y7 for a d16y8 by madscientist auto in Ohio

Engine Management

Hondata P28 chipped on Hondata s300 v3 (Not Installed)

Part No: Hondata S300 | $750.00

Exhaust

Goautoworks cast iron log turbo manifold (Not Installed)

Wansmoke 3" down pipe (Not Installed)

Part No: DP HD001 B 300 V BAND | $150.00

steele custom 3" exhaust piping (Not Installed)

Notes: custon welded 3" exhaust from the down pipe back to muffler no cat

xforce twin loop muffler (Not Installed)

Part No: s10-2.5 | $157.00

Fuel

fuel injection clinic 1000cc fuel injectors (Not Installed)

Part No: IS115-1000H | $480.00

Notes: with low impedance wire adapters

AEM 340LPH e85 compatible fuel pump (Not Installed)

Part No: 50-1215 | $150.00

AEM high pressure fuel regulator (Not Installed)

Part No: 25-301BK | $146.00

Gaskets

Cometic head gasket (Not Installed)

Fel-Pro water pump, valve cover, oil pan etc (Not Installed)

Interior

Acura front seats

Notes: 2004 Acura RSX Tan suede seats, custom bracketed to fit

REVi MotorWerks white face glow gauges

Notes: white face adjustable blue green glow gauges custom painted tach, speed etc needles

nightshifts shift boot

Notes: suede black shift boot

Build Notes

[{"insert":"Built D16y8 by madscientistauto\nRebuilt S40 by Synchrotech \n\nScarbird rear disc conversion, using refurbished oem SI brake components \n\nVolvo electric power steering conversion \n\nGoal is 320-400hp 350ftlbs \n"}]

Edited by leprecaunjon March 18, 2025 at 11:48 PM
