NismoBilbo's 1987 Nissan 200sx

Build Feature Image

Vehicle Specs

Build type: Drift

No modifications have been added yet.


Build Notes

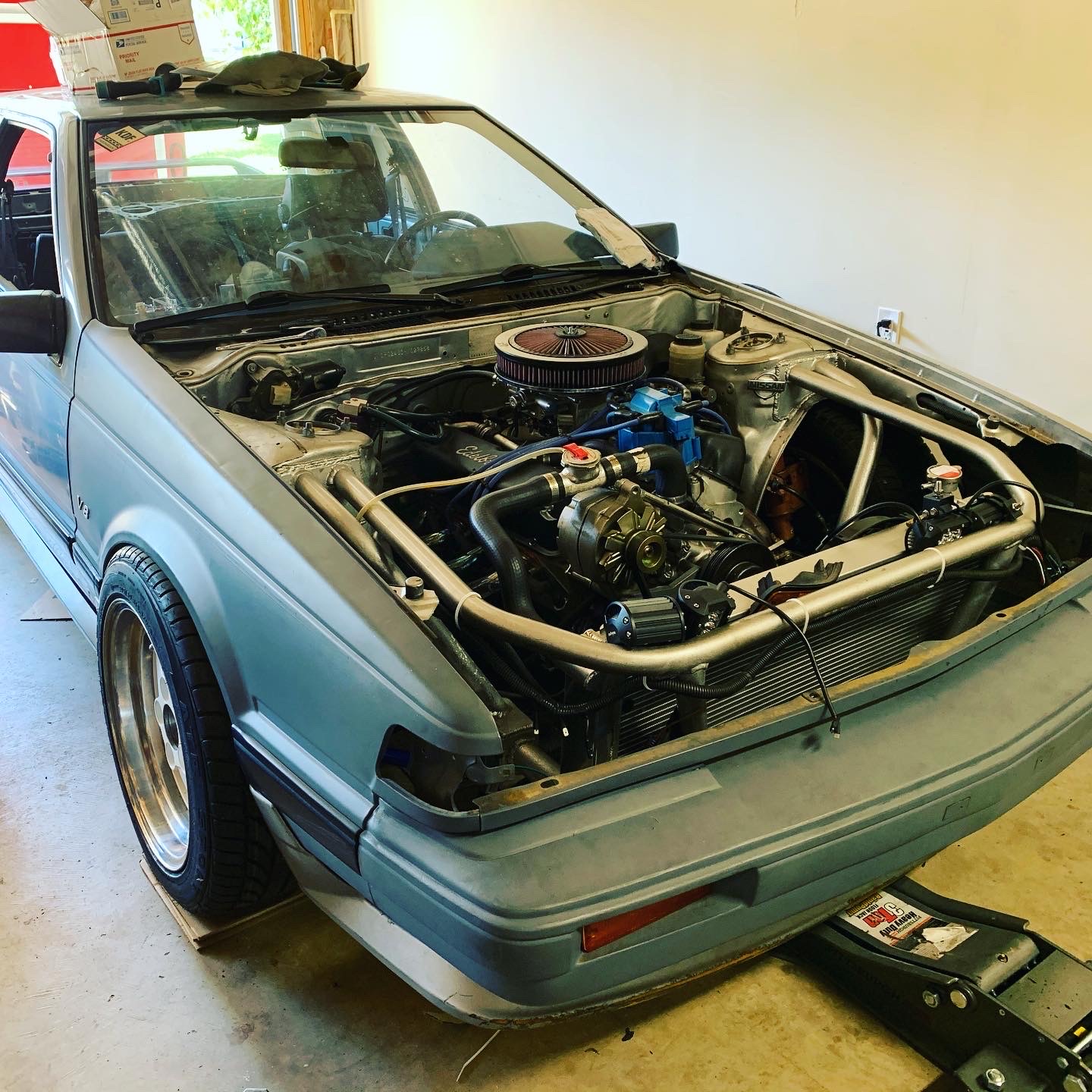

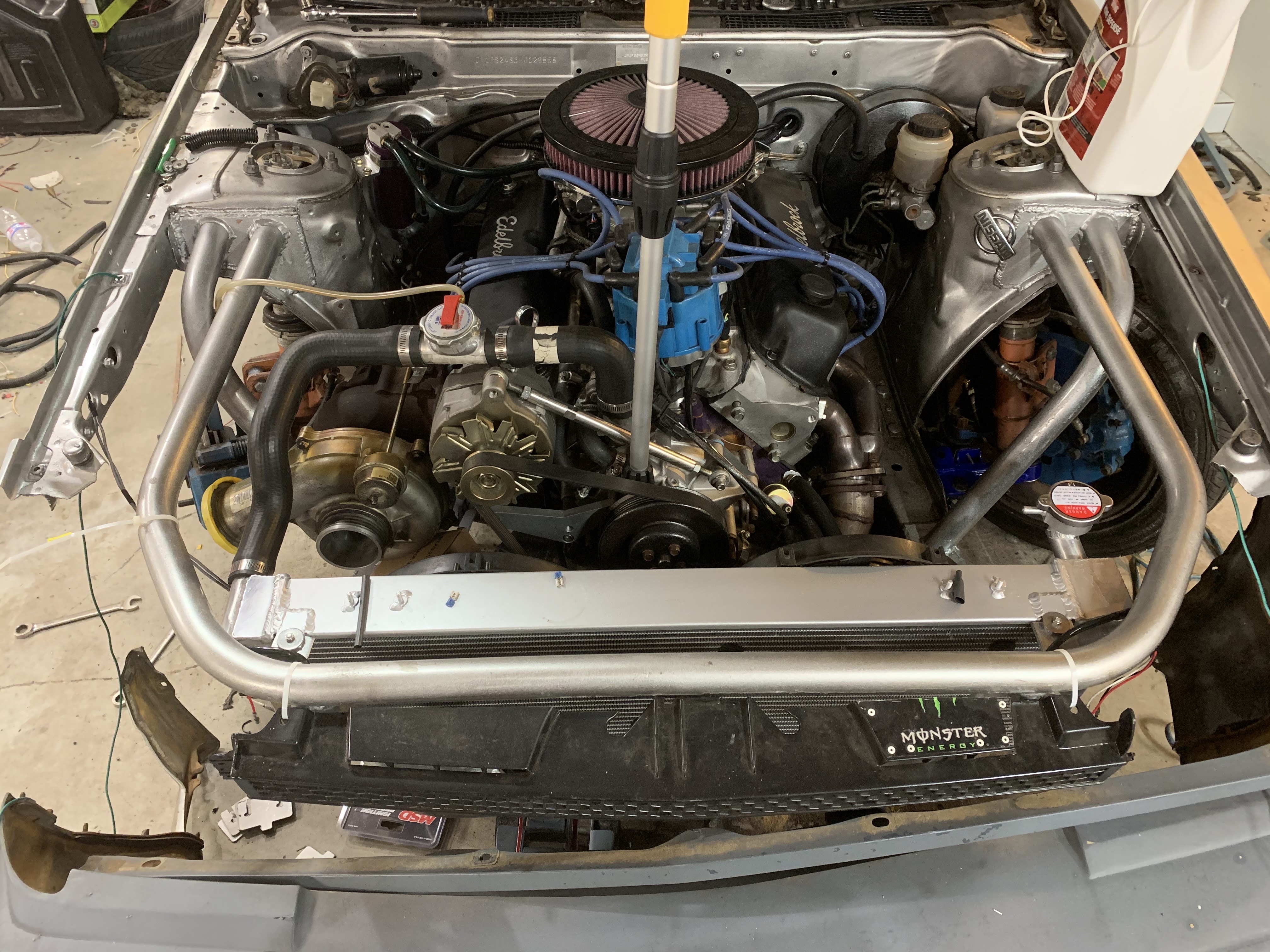

[{"insert":"S12 “500SX” (currently in a million pieces)\n‘87 S12 notch\n-Ford 302/T5 swapped\n-Z31 rear end\n-S13 front suspension\n-Tube front made from parts of a wrecked drift kart\n-FiTech EFI\n\nEngine:\n‘98 Explorer bottom end \nLunati Voodoo cam\nProcomp 220cc heads(ported)\nPerformer RPM intake\nRoller rockers\n\nTrans/clutch:\n-‘92 Mustang T5 w/ steel input shaft bearing retainer plate\n-aluminum flywheel\n-Speedway motors slave cylinder w/ custom bracket\n-Wilwood master cylinder\n-Rigid Racing clutch master adapter\n\nExhaust:\n(Yes it’s dumb)\n-2x passenger side foxbody headers\n-drivers side headers points down/forwards and wraps around engine mount\n-y-pipe to some garbage muffler\n-Blast Pipes (this was built in like 2015 so of course) \n\nDrivetrain:\n-S12 rear subframe \n-Z31 3.54 R200 (welded)\n-Z31 axles \n\nBrakes:\n-stock S13 front + ceramic + drilled/slotted\n-stock Z31 rear\n\nSuspension:\n-KYB AGX Foxbody rear shocks\n-Canuck rear springs\n-Front Tanabe Sustec Pro coilovers\n-S14 tension rod brackets\n-S13 adjustable length LCA’s & tension rods\n-S13 inner tie rods\n-‘95 ford escort outer tie rods\n-rack spacers\n-front sway bar deleted\n\nCooling system:\n-Jeep Cherokee aluminum radiator\n-foxbody radiator hoses\n\nBuilt this as a 20yr old idiot back in the day, don’t judge I’m better now lol. \n"}]

Edited by NismoBilbo March 14, 2025 at 9:41 PM
